Accurate Environmental Test Chamber Temperature Humidity And Altitude Chamber

Top-Rated Temperature , Humidity , & Altitude Chamber for Accurate Environmental Testing

Climatic chamber 1m3 (35ft3) Hot Cold Vacuum Humidity -65°C / +200°C 10 mbar (approx. altitude 85 kft)
Industries

Electronics, defense and aeronautics

Application
Temperature, humidity and vacuum combined tests on electronics components powered with a voltage
of less than 6000 volts

Description of the equipment
The test space with its conditioning unit at the back
The machinery on the rear side with its electrical cabinet
The control board in front of the electrical cabinet.

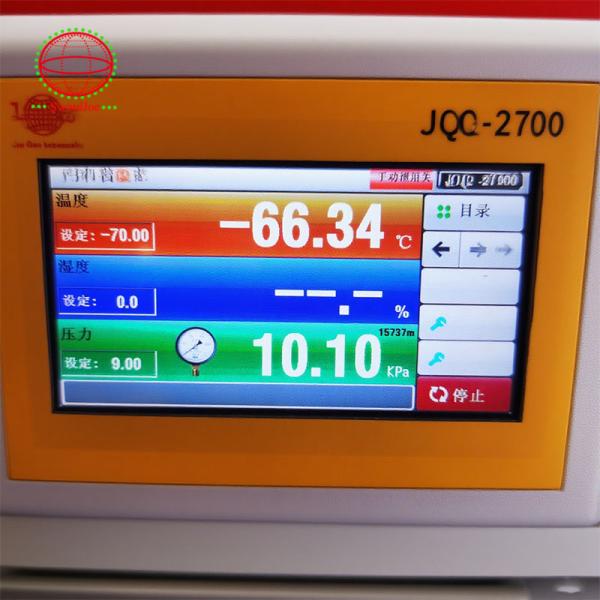

Supervision and control software
and command by touch screen

Temperature Performance

• Average cooling rate : 10°C/min from +175°C to -37°C (empty, down to 150 mbar [approx. altitude 44.3 kft])
• Average heating rate : 10°C/min from -37°C to +175°C (empty, down to 150 mbar [approx. altitude 44.3 kft])
• Temperature stability ≤ ± 0,5°C
• Temperature homogeneity : ± 2°C at 10 cm of the walls
• Temperature, humidity and vacuum combined tests on electronics components powered with a voltage of less than 6000 volts
• DUT heat dissipation : 2 kW at -30°C

Humidity Performance

• Range of temperature : +10°C to +95°C
• Range of humidity: 10 to 98% RH, without dissipation, empty (pressure down to 150 mbar [approx. altitude
• 44.3 kft], during 4h max)
• Uniformity: ± 3 %, at 10 cm of the walls

Vacuum Performance

From AP to 10 mbar, regulated down to 50 mbar (approx. altitude 63.5 kft)

In the range from 100°C down to -65°C Regulating accuracy : ± 1 mbar
